Everything you need to know: TOYOTA Prius hybrid battery

In recent years, hybrid cars have become increasingly popular. One of the most popular hybrid models is the Toyota Prius. As of September 2022, the Prius ranks as the world’s best-selling hybrid car, with 5 million units sold. It comes with a unique battery system for drive and fuel efficiency.

As a longtime Prius owner, I know hybrid batteries can be a mystery to many people. It’s a critical component of the car’s hybrid system, but how does it work? How long does it last? And what should you do if it needs to be replaced? In this ultimate guide, I’ll answer all of these questions and more.

The Prius hybrid battery – Brief introduction

The Prius hybrid battery is a remarkable feat of engineering that has revolutionized the automotive industry.

The battery is located at the rear side and consists of 28 individual modules. Each module contains six 1.2-volt rechargeable nickel-metal hydride (NiMH) cells connected in series. Accordingly, the Prius battery produces about 200 volts of current.

 It stores energy from regenerative braking and the gasoline engine, which it uses to power the motor when the car is operating in electric mode. When the battery is depleted, the petrol engine takes over and charges the battery while driving.

Thanks to the efficient energy storage and use of the hybrid battery, the Prius can achieve exceptional fuel consumption and produce significantly lower emissions than conventional cars, making it one of the most sustainable and environmentally-friendly cars on the road today.

How the Prius hybrid battery works

The Prius hybrid battery functions through complex charging and discharging processes. When you drive your Prius, the system relies on the gasoline engine and the electric motor working together to power your car while conserving fuel.

In short:

The petrol engine powers the car during normal driving and helps charge the battery.

When the car accelerates, the engine and the electric motor work together to provide the necessary power. The electric motor draws power from the hybrid battery and provides additional torque to the drivetrain.

                                        Prius’s electric motor also acts as a generator

During braking or coasting, kinetic energy is captured and converted into electricity, which is then stored in the battery for later use.

Simply put, the Prius hybrid battery is designed to optimize its energy use by giving where it’s needed and conserving it when it’s not.

Toyota Prius Hybrid Battery Life

Toyota Prius hybrid battery life is a question frequently asked by owners. The good news is that long-lasting battery life is designed to last. The average battery life is about 150,000 miles or eight to ten years.

Troubleshooting Common Issues with Your Prius Hybrid Battery

As with any vehicle component, the Prius hybrid battery can experience its fair share of issues. Here are some common problems and solutions:

  • Warning Lights

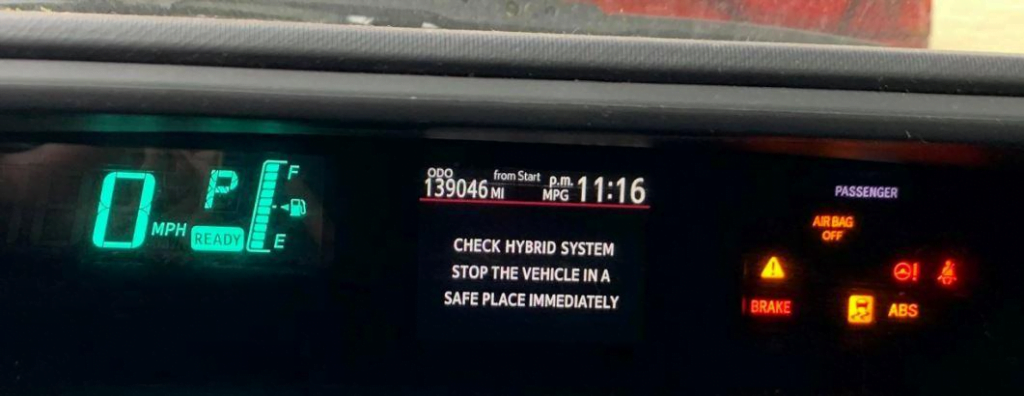

If you see the red triangle or “Check Hybrid System” warning light on your dashboard, it could indicate an issue with your Prius hybrid battery. Bring your car to a certified service center immediately for diagnosis and repair.

  • Reduced Fuel Economy

If you notice a decrease in your Prius fuel economy, it could be a sign that your hybrid battery needs to be replaced. However, it’s essential to check other factors such as tire pressure and air filters before assuming the battery is the problem.

  • Overheating

If your Prius hybrid battery overheats, it can be a severe safety hazard. Pull over immediately and turn off your car. Let it cool for at least 30 minutes before attempting to drive again. Bring your car to a service center to diagnose and repair the issue.

  • Faulty Connections

Connections between the battery and its components can become corroded or loose over time, leading to performance issues. A qualified technician can clean and reattach the connections to restore battery function.

However, frequent use in extreme weather conditions, high-speed driving, deep discharges, high temperatures, and lack of proper maintenance can contribute to battery life degradation.

Do You Need to Disconnect Battery to Change Spark Plugs – By Battery principles

battery principles

Prius hybrid battery replacement

How to know my Prius battery needs to be replaced?

 If you’re wondering how to know if your Prius hybrid battery needs to be replaced, there are a few key indicators to look out for.

  • Decrease in overall performance.

First and foremost, pay attention to your car’s overall performance. If you notice that your Prius isn’t getting the same gas mileage as it used to, or if you’re experiencing a decrease in power or acceleration, there’s a good chance that your battery is starting to wear out.

  • Dashboard warning lights on

You may also notice that your dashboard warning lights are illuminating, it is indicating that there’s an issue with the hybrid system.

  • Do a hybrid battery test.

Another way to tell if your Prius hybrid battery needs to be replaced is to have it tested. Many Toyota dealerships and independent mechanics offer battery testing services that can help determine the health of your battery.

During a battery test, a technician will use specialized equipment to measure your battery’s voltage and overall performance. Based on the results of the test, they can advise you on whether a replacement is necessary.

  • Expired battery

Lastly, consider the age of your Prius. While hybrid batteries are designed to last many years, they have a finite lifespan.

If your Prius is more than 10 years old or has over 150,000 miles on it, your hybrid battery may be starting to wear out. In this case, it may be wise to replace the battery before it fails proactively.

  • Changes in usual activity

And finally, if you’re wondering how to know if your Prius hybrid battery needs to be replaced, keep an eye out for changes in your car’s activity, have it tested by a professional, and consider the age of your vehicle. By staying vigilant and proactive, you can ensure that your Prius continues to provide excellent fuel economy and reliable performance for years to come.

If your battery needs to be replaced, it’s wise to go to a reputable dealer or mechanic specializing in hybrid vehicles. The hybrid battery is a more complex component than the regular lead acid battery. It requires specialized knowledge and equipment to replace.

Price Hybrid battery replacement cost

The good news is that replacement batteries are typically cheaper than they used to be. In the past, a replacement battery could cost $4,000 or more. Today, you can find replacement batteries for as little as $1500, but this price can vary depending on your Prius model and service center.

Prius Hybrid Battery Warranty

If you’re worried about the cost of a replacement battery, it’s worth noting that Toyota offers a warranty on hybrid batteries. According to Toyota’s official website, the battery warranty for a new hybrid vehicle covers 10 years / 150,000 miles.

However, it is better to note that the warranty only covers defects in materials and workmanship. It doesn’t cover normal wear and tear, so if your battery fails after the warranty expires, you’ll have to bear the entire replacement cost.

But don’t worry, there are options to consider that can save you money.

  • Toyota dealerships offer a battery replacement program, which allows you to replace your battery with a new or remanufactured battery at a reduced cost.
  • Another option is to purchase a battery from a third-party supplier, which can be less expensive but may not come with a warranty.

Should be consider

Not all Prius hybrid batteries need to replace at the same time. The individual modules can replace as they fail, which can save you money in the long run.

Keep an eye on your car’s maintenance schedule and have your Prius hybrid battery checked regularly to prevent problems from arising!

Tips for maintaining your Prius hybrid battery

Proper maintenance helps you ensure optimal performance and longevity of your Prius Hybrid battery. Here are some tips to keep in mind:

Regular running

Be sure to drive your Prius regularly to keep the battery charged and prevent deep discharges.

Drive smoothly

Avoid frequent high-speed driving and sudden acceleration, which can drain the battery quickly. So drive smoothly and avoid unnecessary stress.

Avoid extreme temperatures.

High temperatures can shorten the life of your battery. Park your car in a shaded area and avoid exposing it to extreme heat or cold.

Check the water level.

Some Prius batteries require regular water refills. Check your owner’s manual and add distilled water if necessary.

Always keep it charged.

Maintaining the hybrid battery in a constant state of charge affects its life.

Consider investing in a battery charger or conditioner to keep the battery charged, especially when the vehicle is not using.

Do regular checkups.

Regular check-ups help identify and address any problems before they become serious. Take your car to a certified mechanic for regular maintenance.

Following these tips will help ensure that your Prius Hybrid battery is in optimal condition, giving you many more years of efficient and eco-friendly driving.


The Prius hybrid battery is a critical component of the car’s hybrid system. It powers the electric motor, which helps to improve fuel efficiency and reduce emissions. While the battery is designed to last for the life of the car, it may need to be replaced at some point.

Whenever your hybrid vehicle battery needs to replace, take it to a reputable dealer or certified mechanic in hybrid vehicles. Maintaining your car regularly can help extend its life and keep it in top condition.

Finally, by following the tips in this guide, you can help to ensure that your battery lasts as long as possible and that your car continues to perform at its best.
